Track Aliases

GenomicFigure.add_track() accepts a concrete track object or a string alias. Aliases are the bridge between Python, YAML templates, and generated config.

Alias usage

from plotnado import GenomicFigure
from plotnado.examples import REGION, signal
# signal() → DataFrame(chrom, start, end, value) — replace with a BigWig path/URL or DataFrame

fig = GenomicFigure().autocolor("Set2")
fig.add_track("scalebar")
fig.add_track("axis")
fig.add_track("bigwig", data=signal(phase=0.0), title="Replicate A", style="fill")
fig.add_track("bigwig", data=signal(phase=0.9), title="Replicate B", style="fill")

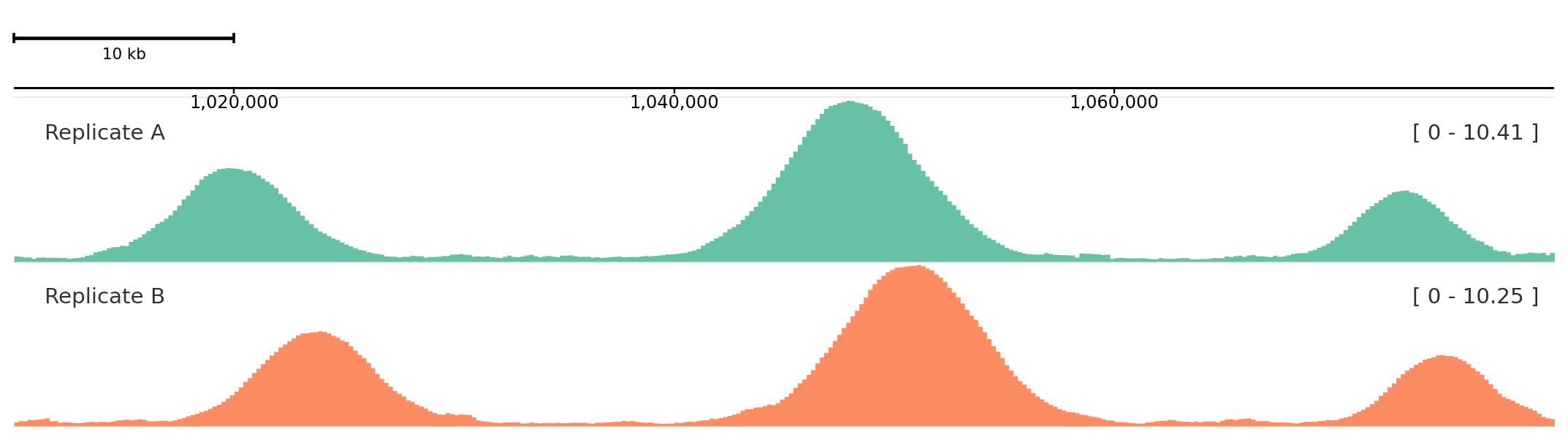

fig.plot(REGION)

Alias-added tracks render the same way as helper-method tracks.

Track constructor fields are passed directly.
Aesthetics fields such as color, alpha, and style are routed to aesthetics.
Label fields such as title, title_color, and title_location are routed to label.
If shorthand and nested objects are both supplied, shorthand values win for overlapping keys.

Common aliases

Family	Aliases
Structural	`scalebar`, `scale`, `axis`, `spacer`
Signal	`bigwig`, `bw`, `signal`, `bedgraph`, `overlay`, `bigwig_overlay`, `bigwig_collection`, `bigwig_diff`
Interval	`bed`, `annotation`, `unknown`, `narrowpeak`, `links`, `highlight`, `hline`, `vline`
Genes	`genes`, `gene`
Optional matrix	`cooler`, `cooler_average`, `capcruncher`
Optional QuantNado	`quantnado_coverage`, `quantnado_stranded_coverage`, `quantnado_methylation`, `quantnado_variant`

Optional matrix and QuantNado aliases require the corresponding dependencies and data formats.

Current alias map

from plotnado import GenomicFigure

aliases = GenomicFigure.available_track_aliases()
rows = ["| Alias | Track class |", "|---|---|"]
rows.extend(f"| `{alias}` | `{target}` |" for alias, target in sorted(aliases.items()))
print("\n".join(rows))

Alias	Track class
`annotation`	`BedTrack`
`axis`	`GenomicAxis`
`bed`	`BedTrack`
`bedgraph`	`BigWigTrack`
`bigwig`	`BigWigTrack`
`bigwig_collection`	`BigWigCollection`
`bigwig_diff`	`BigWigDiff`
`bigwig_overlay`	`OverlayTrack`
`bw`	`BigWigTrack`
`capcruncher`	`CapcruncherTrack`
`cooler`	`CoolerTrack`
`cooler_average`	`CoolerAverage`
`gene`	`Genes`
`genes`	`Genes`
`highlight`	`HighlightsFromFile`
`hline`	`HLineTrack`
`links`	`LinksTrack`
`narrowpeak`	`NarrowPeakTrack`
`overlay`	`OverlayTrack`
`quantnado_coverage`	`QuantNadoCoverageTrack`
`quantnado_methylation`	`QuantNadoMethylationTrack`
`quantnado_stranded_coverage`	`QuantNadoStrandedCoverageTrack`
`quantnado_variant`	`QuantNadoVariantTrack`
`scale`	`ScaleBar`
`scalebar`	`ScaleBar`
`signal`	`BigWigTrack`
`spacer`	`Spacer`
`unknown`	`BedTrack`
`vline`	`VLineTrack`

Use Track Catalog for choosing track families and Compact Options for field lookup.
